SR Autosource In Line Fuel Filter and Bracket Assembly

LIMITED LAUNCH AVAILABILITY – MORE OPTIONS TO FOLLOW – IF YOU CAN’T SEE WHAT YOU NEED PLEASE MESSAGE

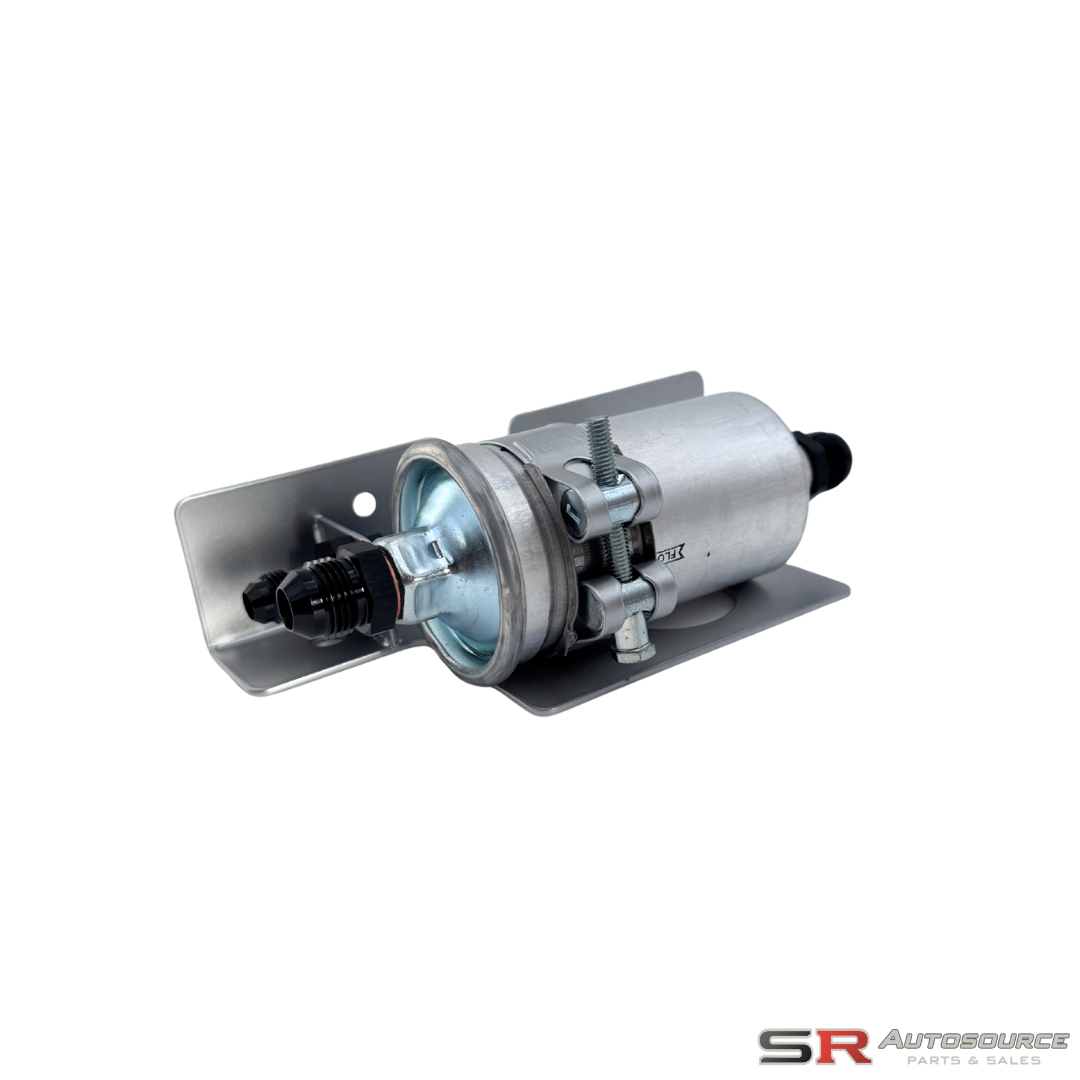

SR Autosource In Line Fuel Filter and Bracket Assembly to suit R32 R33 R34 Skyline Models (and others with custom mountings)

A proper fuel system needs proper filtration. Gone are the days of shoehorning an OEM Nissan fuel filter into an otherwise spectacular fuel supply..

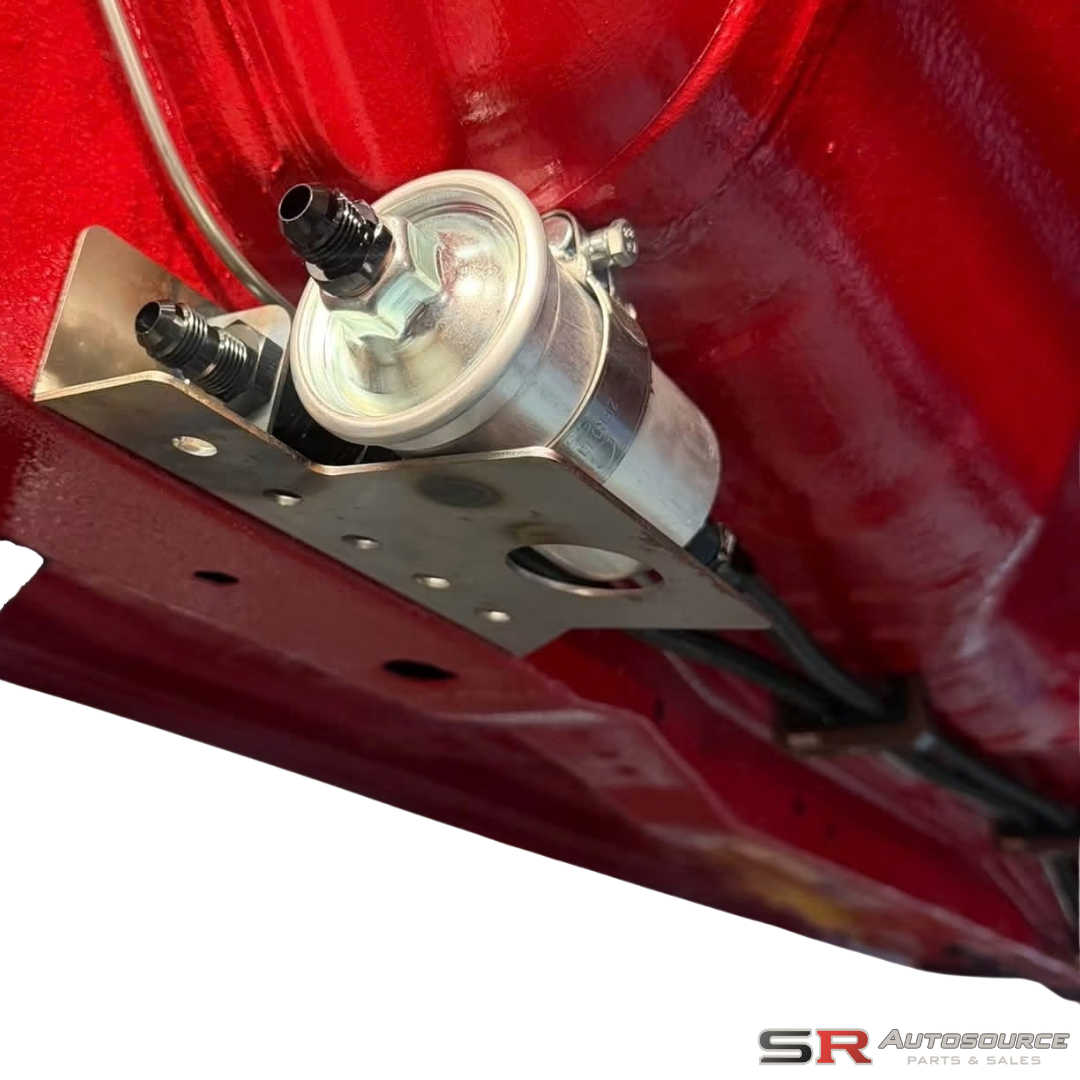

This bespoke mounting locates conveniently on the inner chassis rail of the car and utilises two original OEM mounting points (2 further points utilise the included rivet nut inserts).

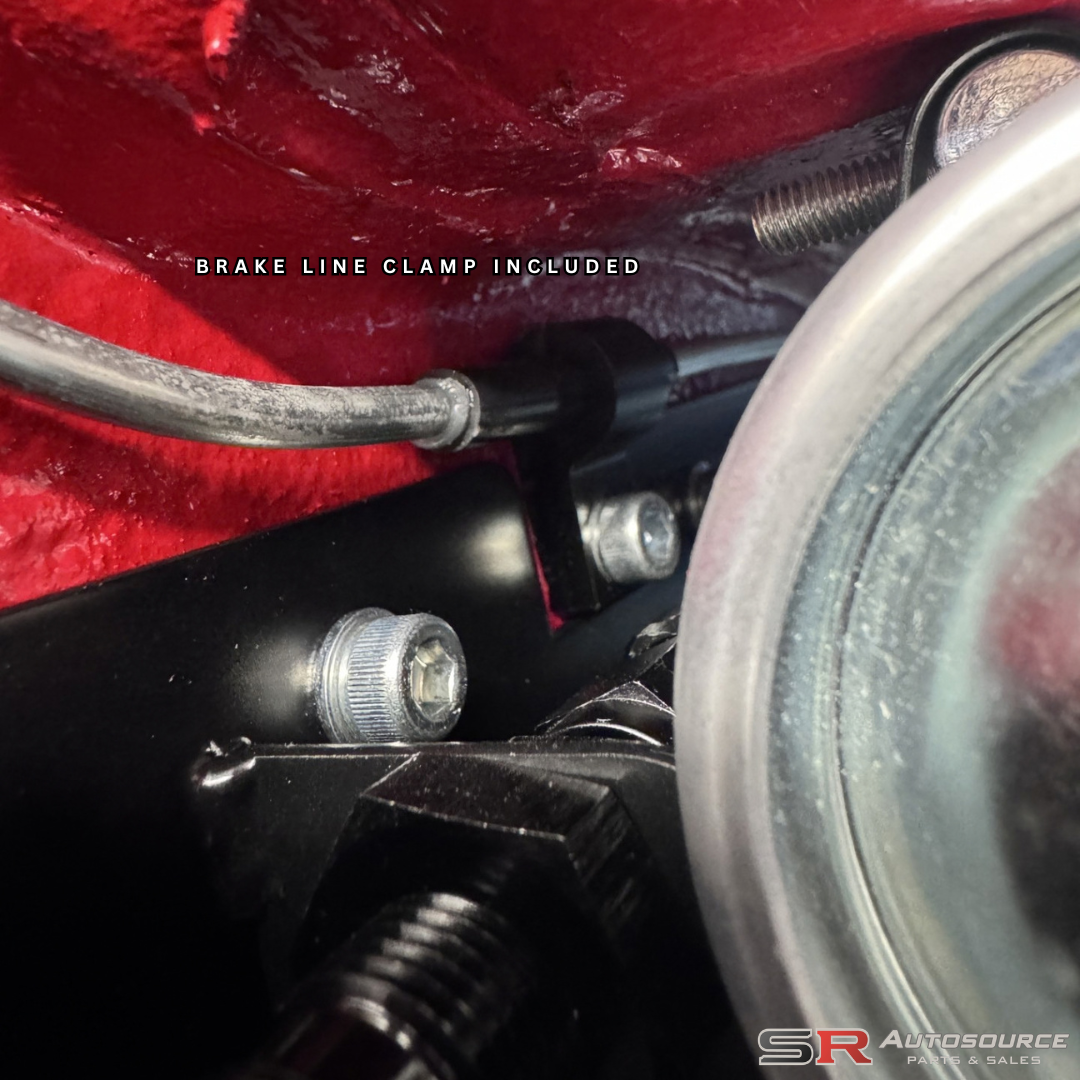

Supplied with the necessary AN lines to connect up to your existing fuel system with a choice of sizes, as well as a brake line clamp to make routing through the new assembly a breeze.

OPTIONS and UPGRADES

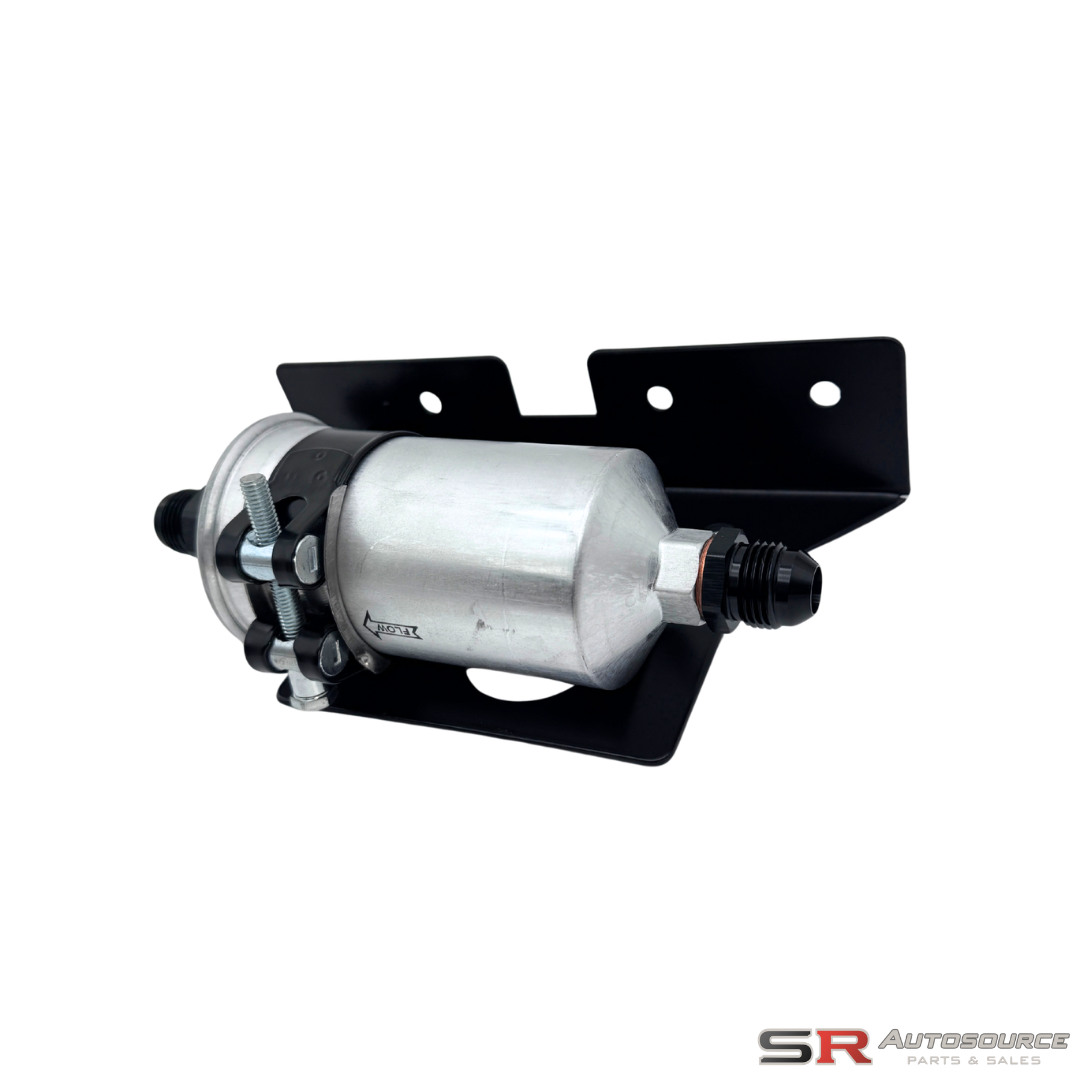

Choice of Black or Silver Coated Bracket

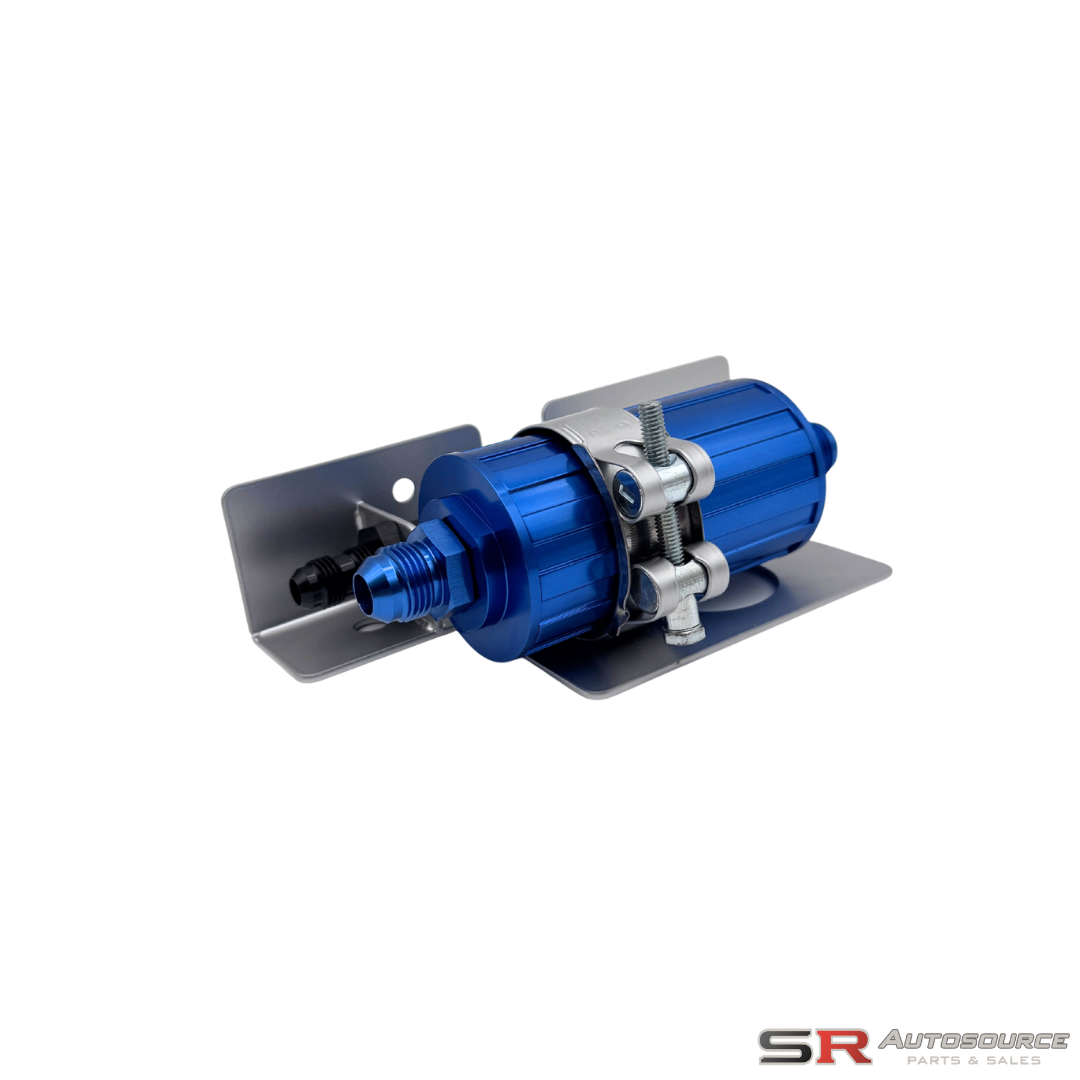

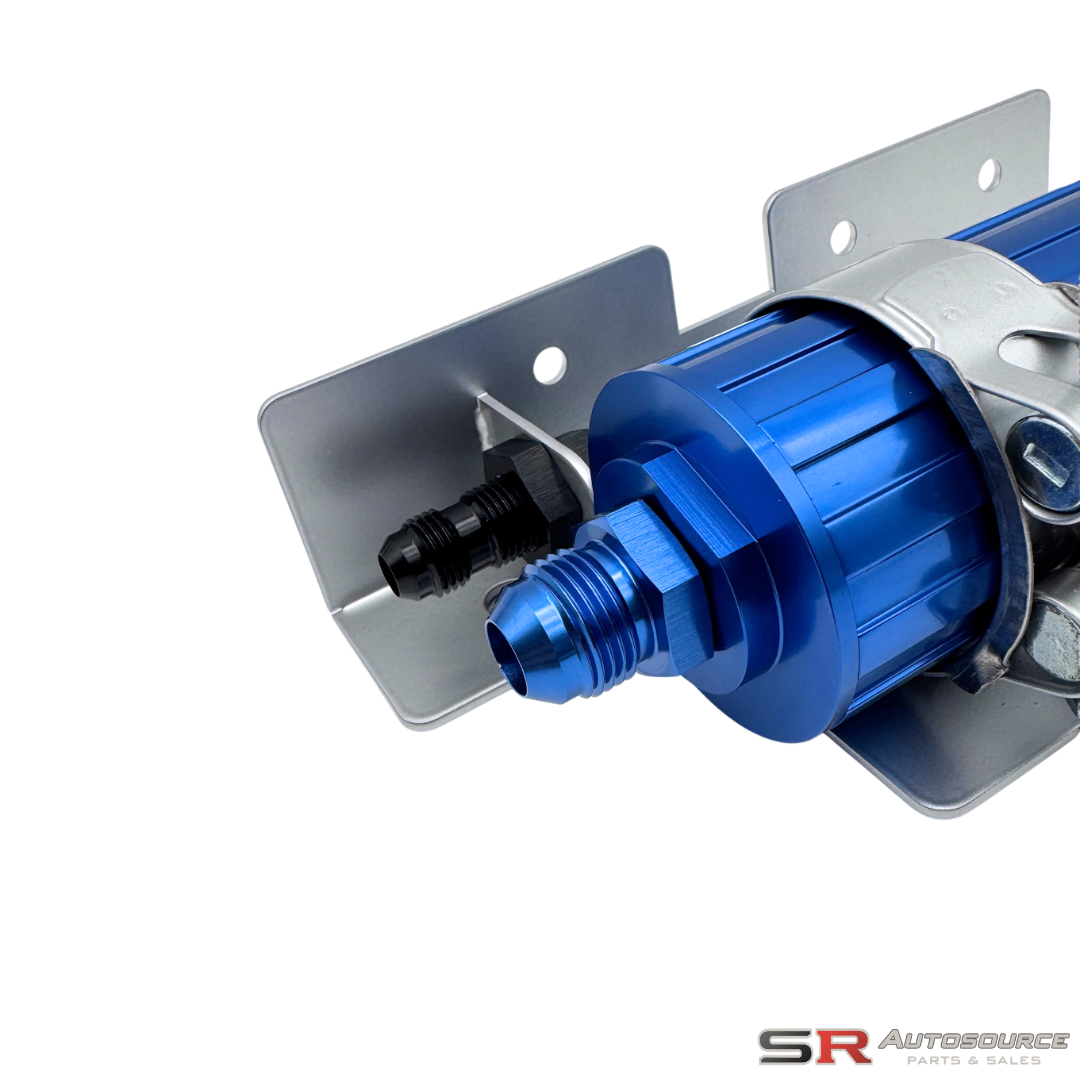

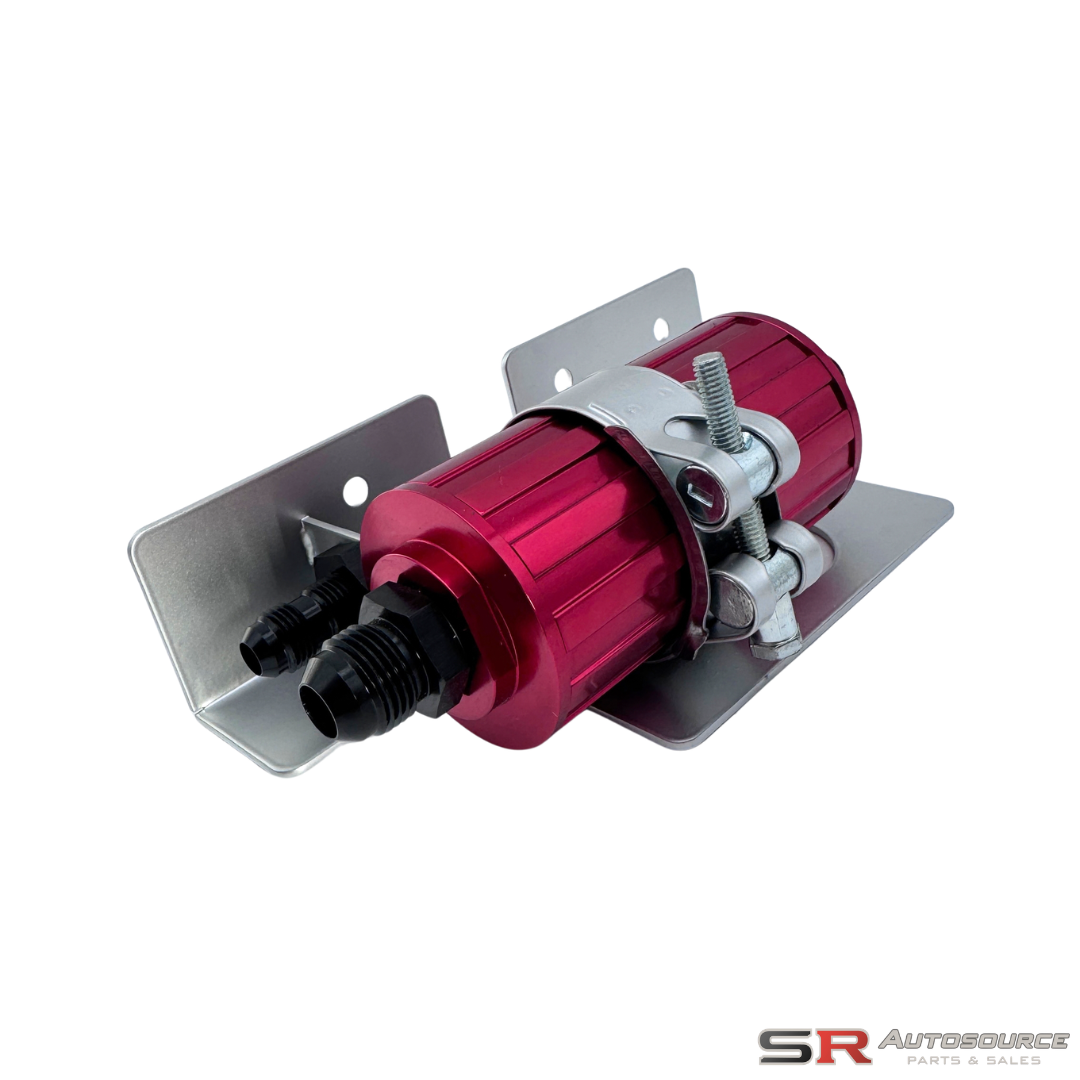

Billet Multi Fuel Compatible Filter for E85 and similar

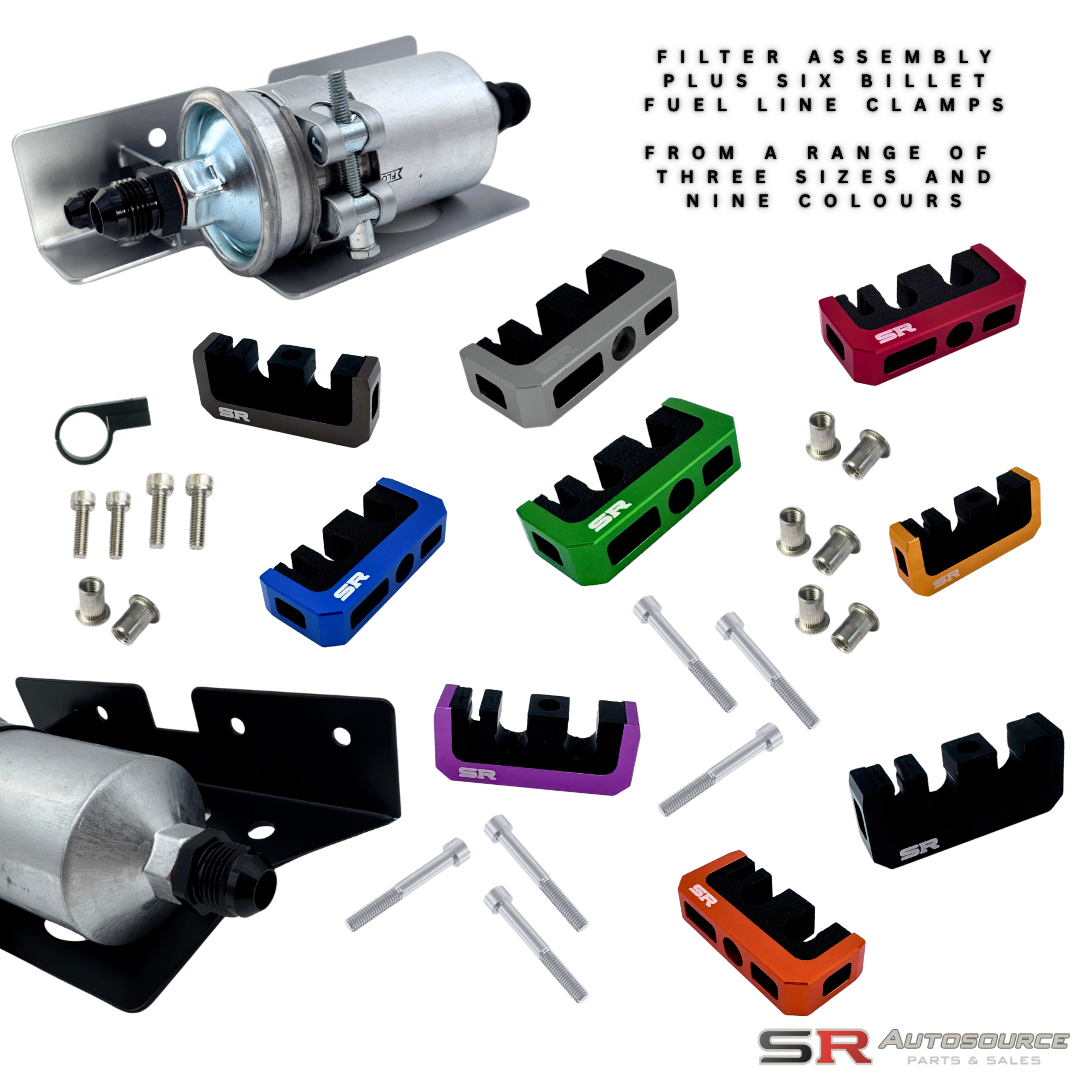

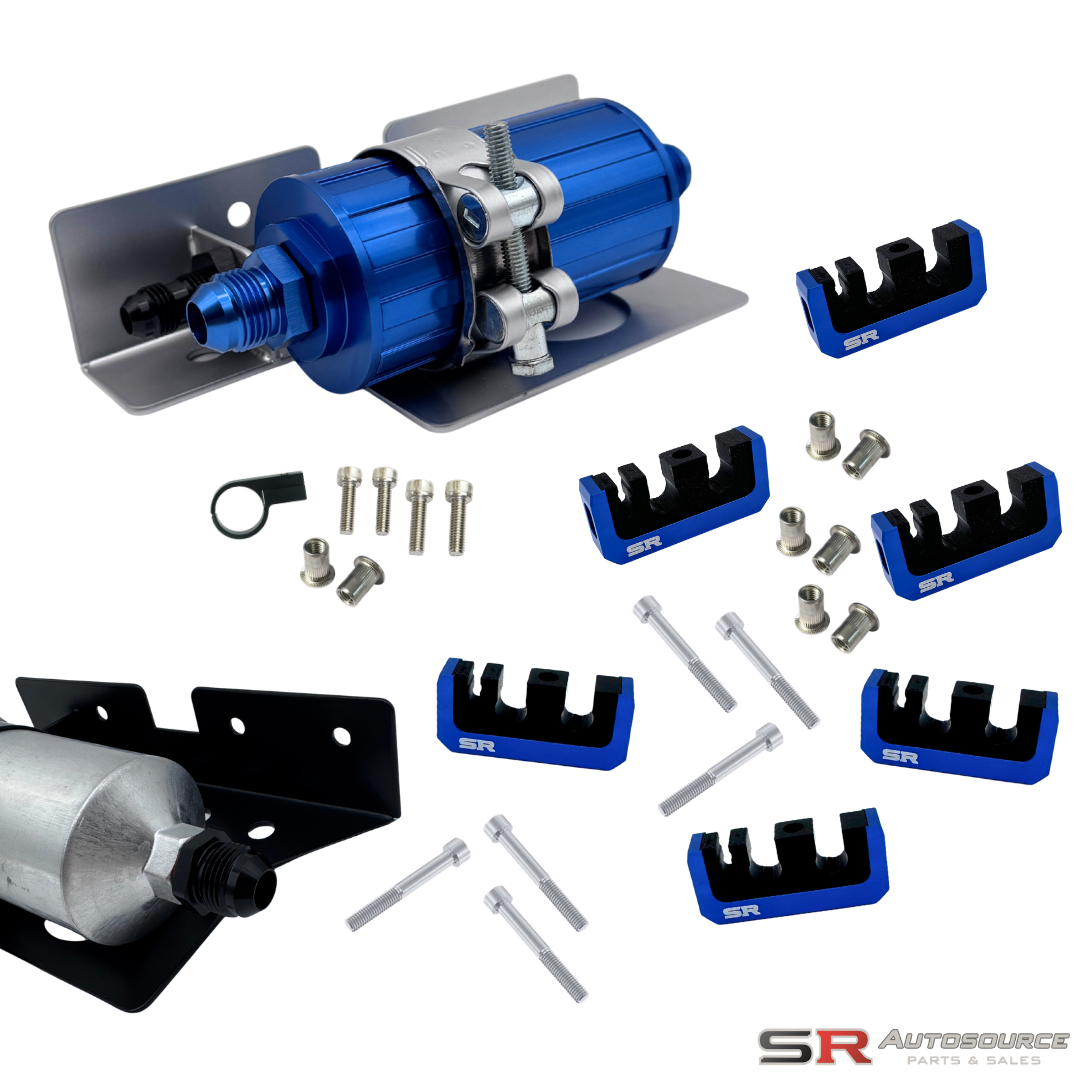

Add Six of our SR Autosource Billet Fuel Line Clamps in your choice of colour at a reduced package price

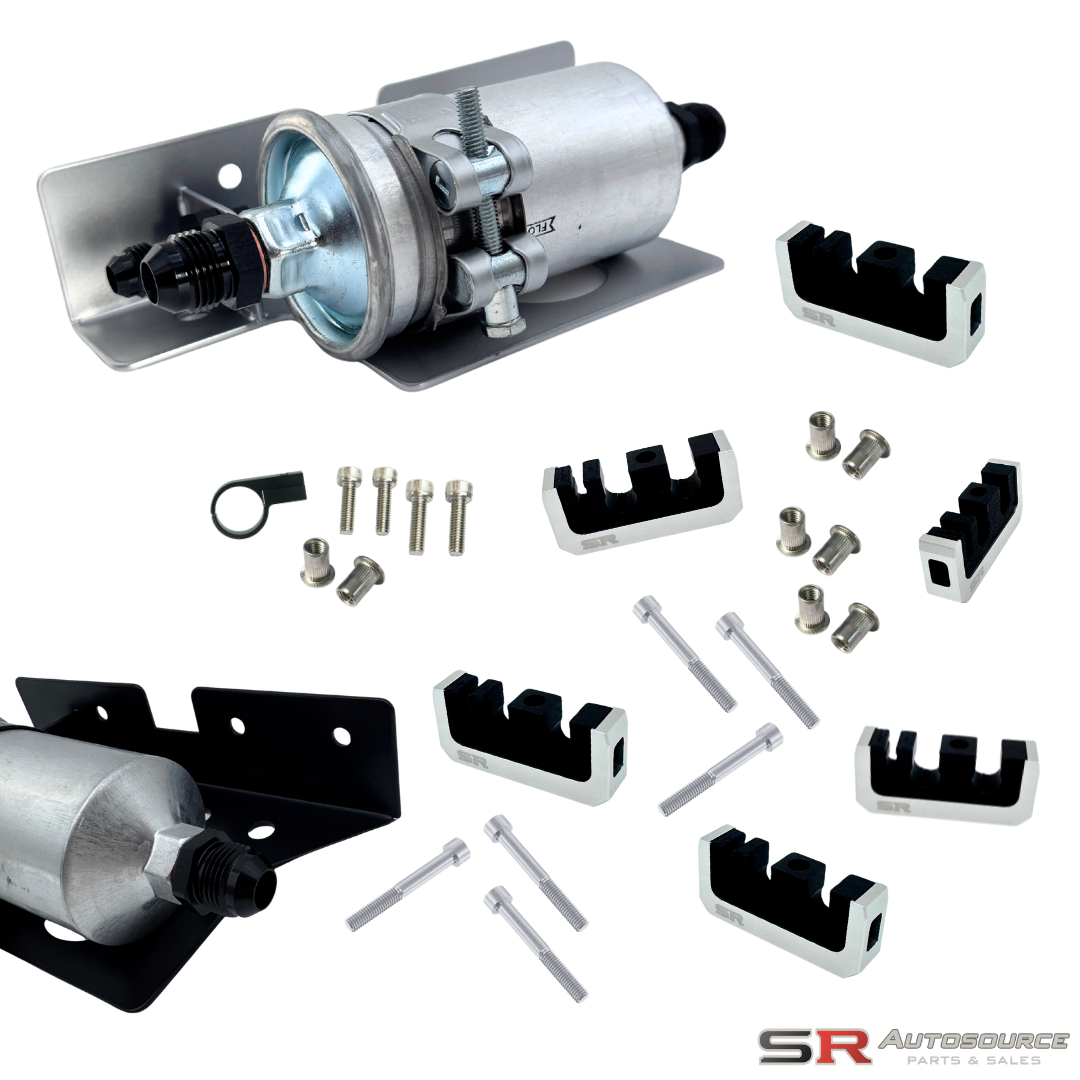

INCLUDED IN YOUR KIT

Fuel Filter x1

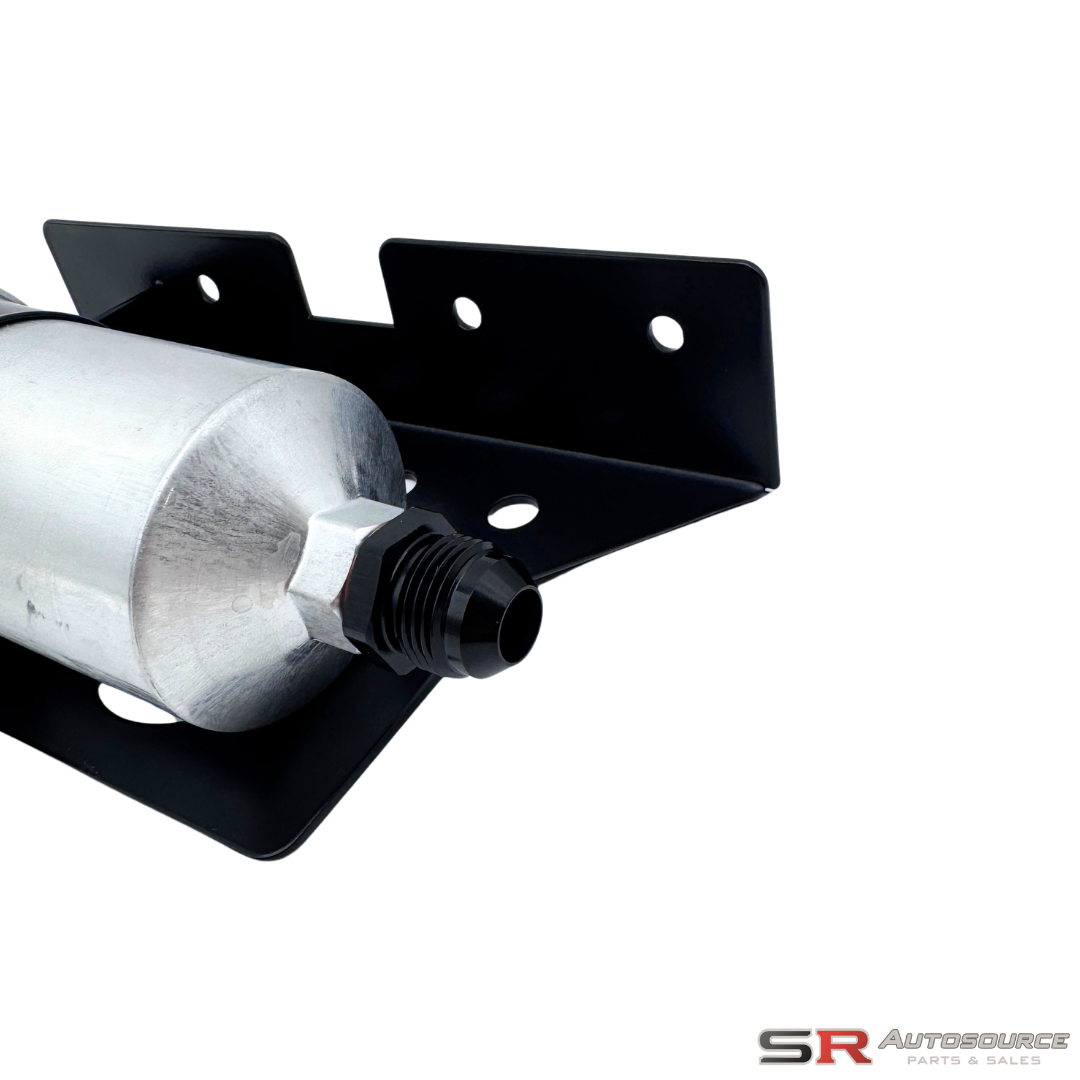

Bracket x1

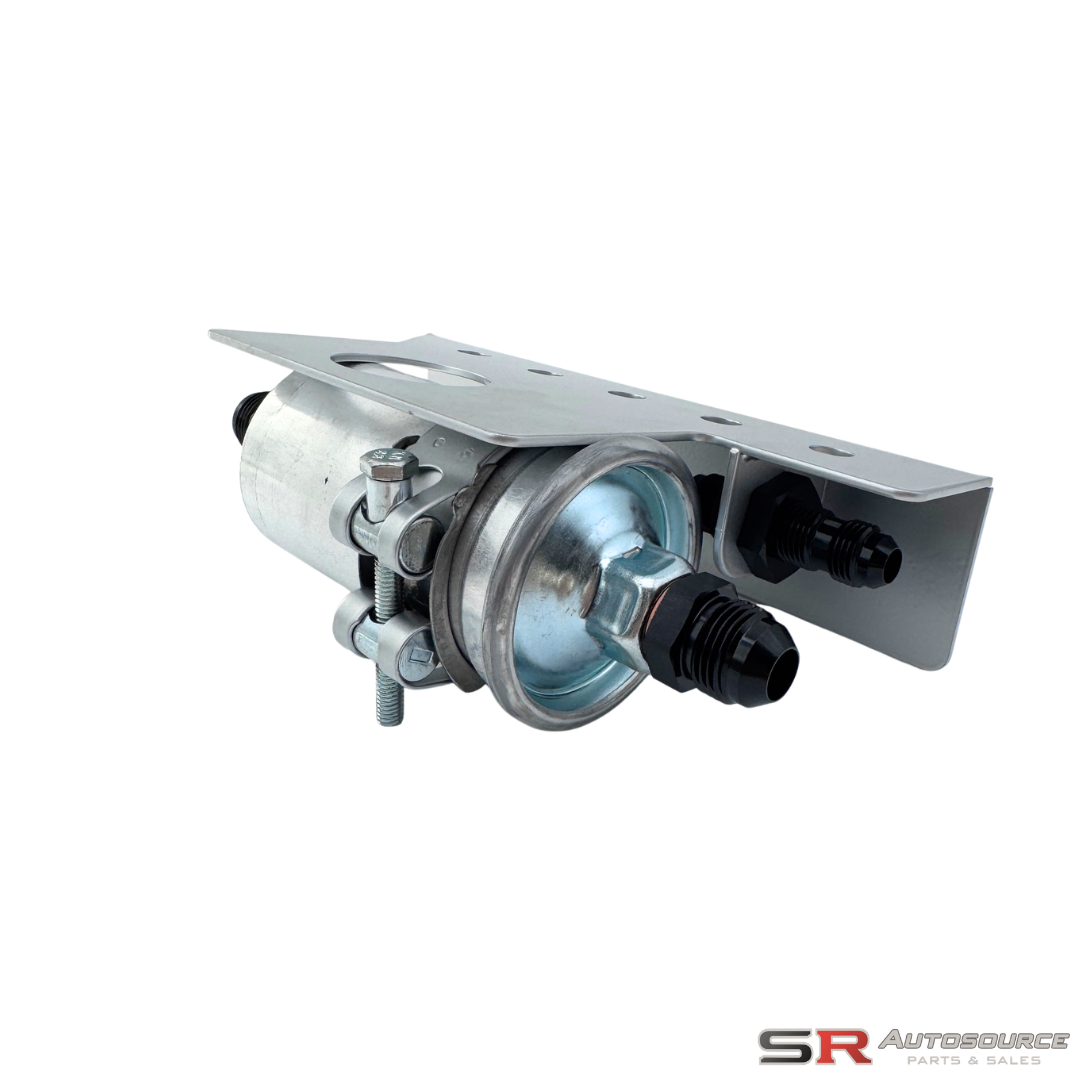

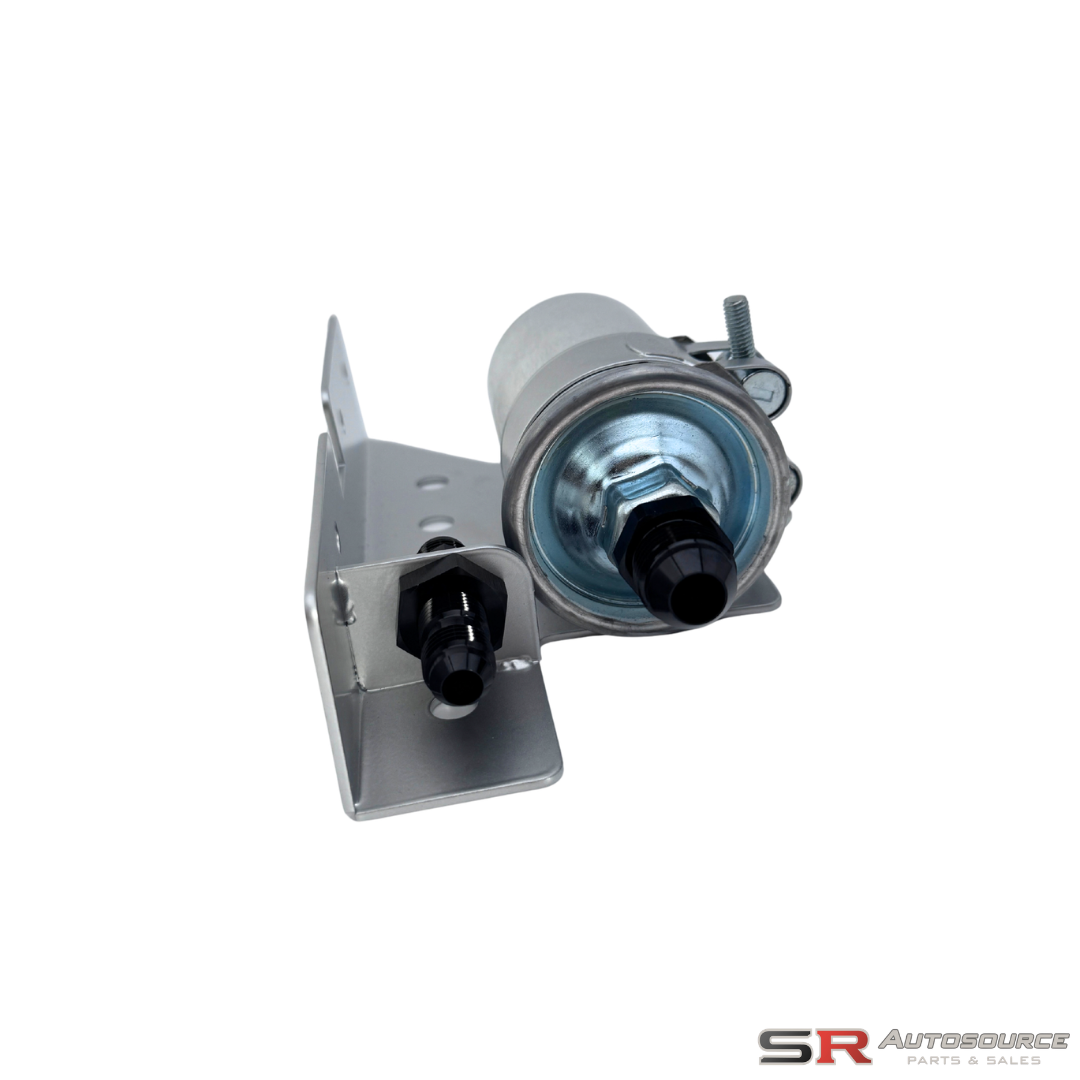

AN Lines for both the filter itself on the feed line and a bulkhead connection on the bracket for the return line

Rivet Nut Inserts x2

Mounting Bolts x4

Billet Mounting Washers x4 (these will be supplied in either black or silver to match the bracket unless ordering with fuel line clamps in which case they will match your colour choice)

FITMENT NOTES

This Kit can be used on any vehicle but will require extra mounting points being added – please contact prior to order and additional fixings can be added

This assembly requires the deletion of the OEM Nissan factory clutch damper (which you’ve probably done already but it’s nice to let you know..)

The supplied standard filter is a replaceable unit and suitable for all current UK pump fuel (E5 and E10)

If you are running any form of race fuel, E85, or a mixture (flex fuel) then select the upgraded billet fuel filter option (this is a serviceable filter and capable of handling multi fuels)

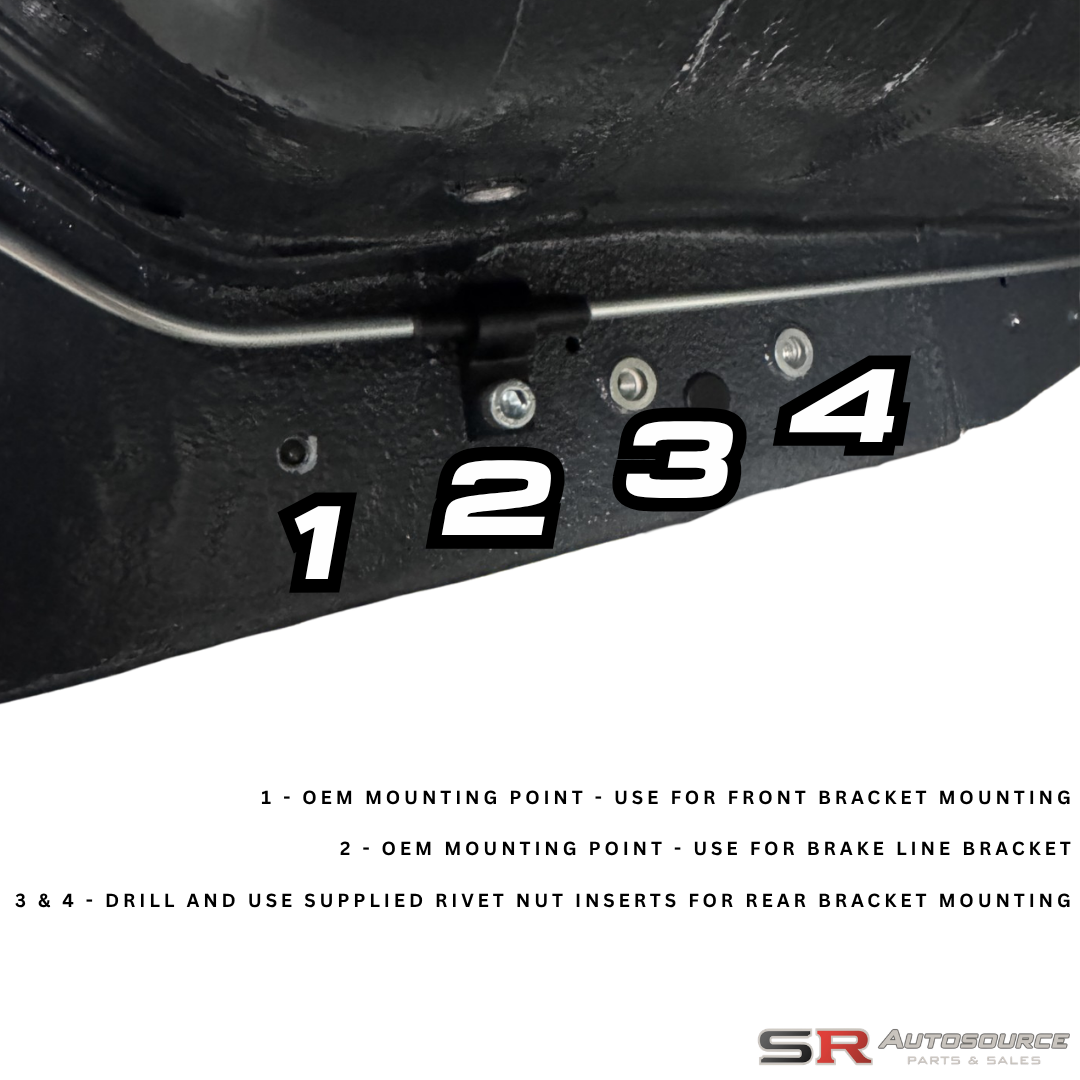

The rear two mountings require the use of the included rivet nut inserts – we recommend securing the front mounting to the OEM point (shown in images) and using the bracket to mark out for the rears.
